Maison > Des produits > Solar Inverter > Off Grid Inverter > HIS5548 5.5KW|Off Gird|Solar Inverter

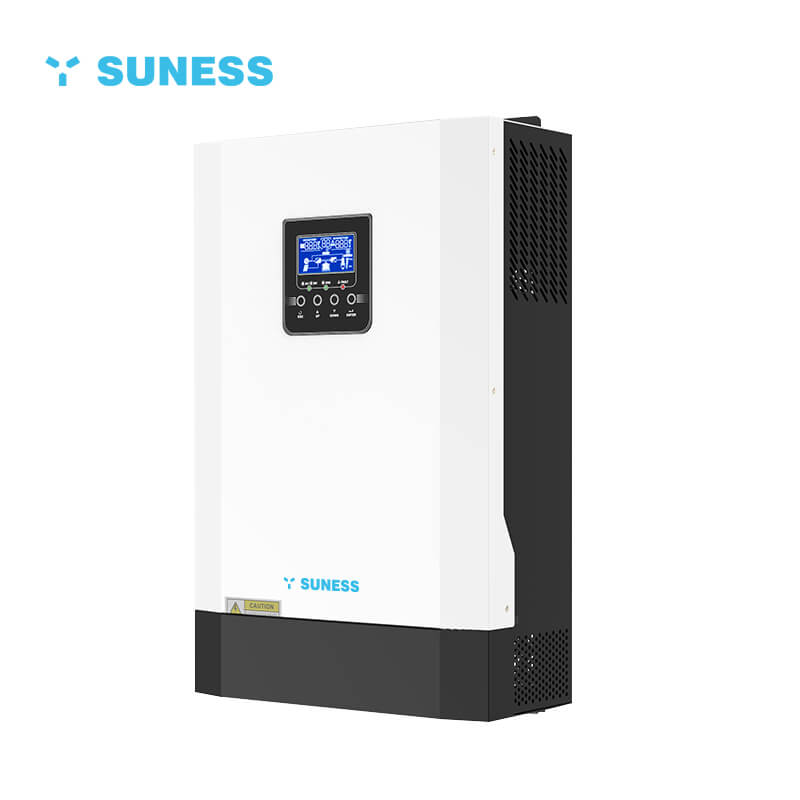

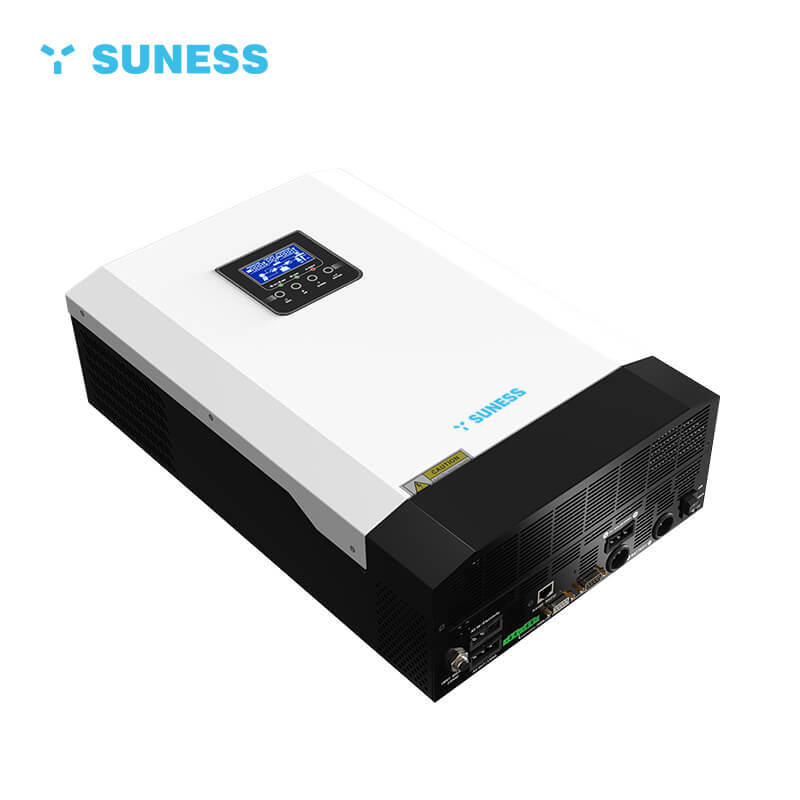

HIS5548 5.5KW|Off Gird|Solar Inverter

ModelHIS5548
Rated outpot power(W)5500
MAX. PV Charging500V
Rated battery input Voltage48V

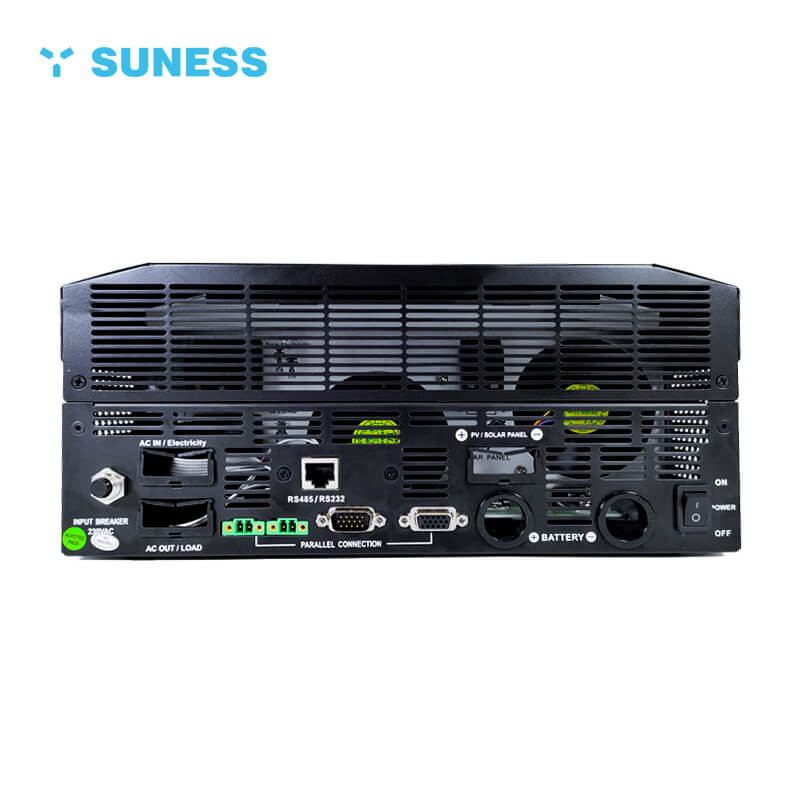

CommunicationRS485&RS232
ApplicationHome
Dimension[W×DxH,mm]472×298×129
Net Weight [Kg]10.5


Introduction

HIP Series


Output power factor 1.0


Programmable supply priority for PV,battery or Grid


User-adjustable charge current and voltage


Wide PV input range(120Vdc-500Vdc),110A MPPT SCC


Working without batteries in sunny day


WiFi Monitoring Function(optional)


Anti-dusk kit for harsh environment(optional)


LCD remote control with 10 meters wire(optional)


PV and electricity complementary


Use with lithium batteries

Specification

INVERTER     MODELHIS-3524HIS-5548
Input  Voltage WaveformSinusoidal(utility or generator)
Nominal Input Voltage230Vac
Low Loss Voltage170Vac±7V(UPS)
90Vac±7V(Appliances)
Low Loss Return Voltage180Vac±7V(UPS);
100Vac±7V(Appliances)
High Loss Voltage280Vac±7V
High Loss Return Voltage270Vac±7V
Max AC Input Voltage300Vac
Nominal Input Frequency50Hz/ 60Hz(Auto detection)
Low Loss Frequency40±1Hz
Low Loss Return Frequency42±1Hz
High Loss Frequency65±1Hz
High Loss Return Frequency63±1Hz
Output Short Circuit Protection  Line mode:Circuit Breaker
Battery mode:Electronic Circuits
Efficiency(Line Mode)>95%(Rated R load, battery full charged)
Transfer Time10ms typical(UPS);
20ms typical(Appliances)
Utility Charging Mode
INVERTER    MODELHiS-3524HiS-5548
Charging  Current(UPS)
@ Nominal Input Voltage
80A80A
Charging Algorithm3-Step

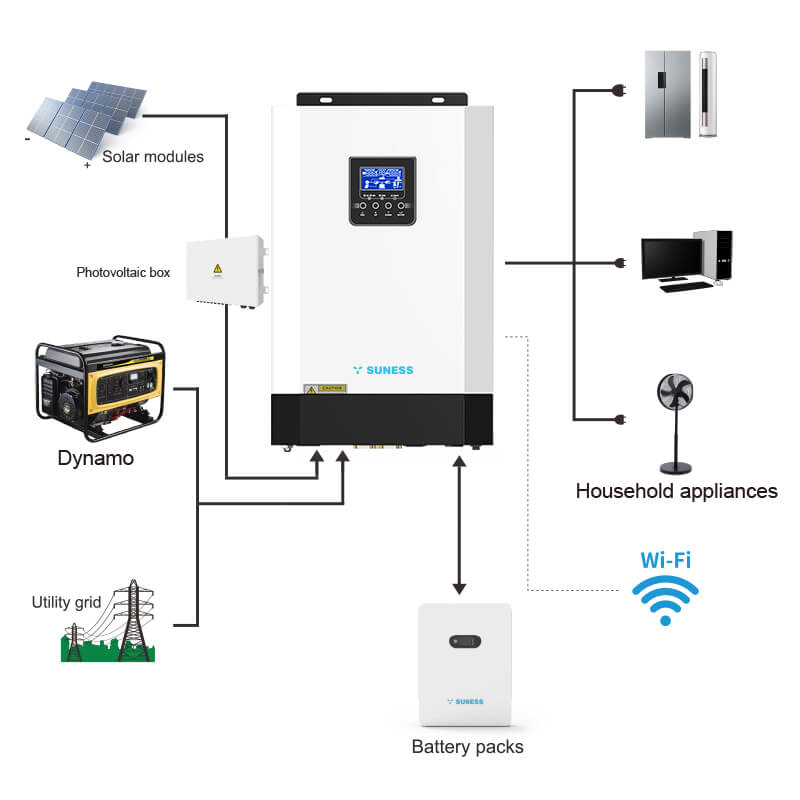

System connect

Solar Inverter Working Without Battery

Solar Inverter Working Without Battery

Solar Inverter Working With Battery

Solar Inverter Working With Battery
